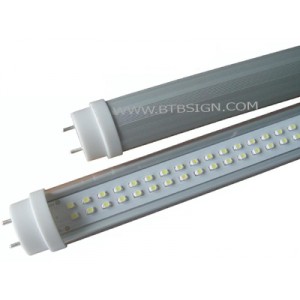

120cm 16W T8 LED Tube Light

120cm 16W T8 LED Tube Light

120cm 16W T8 LED Tube Light



Products Features:

-High power factor and power efficiency save the energy.
-Instant start and no flicker, protect people eyes.
-No ultraviolet and infrared ray, and no mercury.
-Easy to installation and to replace traditional tube light.
-With the aluminium substrate have good thermal radiation.
-Installed directly with inductive ballast
-Saves more than 70% energy compared with fluorescent tube



Parameters:

Model: T8-120-16W01

Wattage: 16W

LED : SMD
Input Voltage: AC85-265V
Work frequency: 50-60Hz

Dimension; Φ26*L1200mm
Luminous flux: 100lm/W
Color Temperature: Warm White 2800-3200K, Neutral white 4000-4500K, Cool White 6000-6500K
Cover and Viewing Angle: Clear 120 degree/ Milky 170 degree

Tube material: Aluminum + PC cover
Environment Humidity: >95%
Working Temperature: -30℃ ~+ 55℃

Life span: 50,000hours

Length Optional: 0.6m , 0.9m , 1.2m , 1.5m

Wattage Optional: 8W,10W,12W, 18W, 20W,25W etc



Installations:
●Standard:
Connect directly to AC power, this is the most energy saving model
●Replace:
If there’s a starter on the old fluorescent light fixture, remove the starter
●Remove electronic ballast
If there’s no starter on the fluorescent light fixture, remove the electronics ballast
